| Availability | on demand | |
| Application | Primary (Campus), Secondary (Riser), Tertiary (Horizontal) | |
| IPTV; HbbTV 2.0.n | ||
| IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T | ||
| IEEE 802.5 16 MB: ISDN; TPDDI; ATM; PoE | ||
| Indoor + Outdoor Installation | ||
| acc. to Standard | ISO/IEC 11801 Class D | |
| EN 50288-3-1 | ||
| EN 50173 | ||
| EIA-TIA 568 | ||
| CEI-UNEL 36762 | ||
| Reaction to Fire | EN50575 | |
| CONSTRUCTION DATA | ||
| Outer Sheath | Ø mm | 5,1x11,2 |
| material | LSZH | |
| PHYSICAL DATA | ||
| Copper Content | kg/km | 28,7 |
| Cable Weight | kg/km | 65,8 |
| Max.Tensile Strength | N | 200 |
| Loop resistance | Ohm/km |
Cat. 5e U/UTP 4x2xAWG24/1
Standard Packing
Plug and Socket RJ45 and tools
-

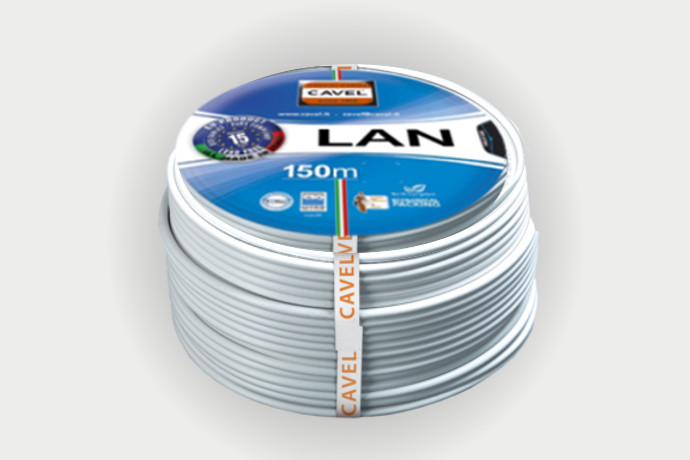

Mod. S150L
-
2 x 150m = 300m Shrink Pack in Carton Single-unit Package Coil
Fits CABLEBOX DS250
Item 2XLAN540ZHMKS150 Unith Length m 150 Unit Length Barcode EAN13 8000083610150 Unit Packing Content m 2 x 150m = 300m Unit Packing Barcode EAN13 8000083630301
Socket RJ45
Plug RJ45
-
KJ540AB
Socket RJ45 UTP
Cat.5e toolless black
-
PLUG5U
Plug RJ45
Plug RJ45 UTP Cat. 5e
